We are never able to guarantee in advance that any model-based algorithm will work in practice. Irrespective of how the models used for signal processing and control are obtained, they will be imperfect.

A way to reduce the risk somewhat is to construct reliable, robust, filters and controllers. The design is then based not only on nominal design models, but also on specified sets of deviations between the models and the true systems. Such sets are called error models, or uncertainty models.

We have spent considerable effort on robust design, focusing on methods to handle spectral uncertainty in linear models of dynamic systems. Techniques have been developed for Wiener filtering, Kalman filtering, feedforward control and for the design of adaptation laws.

A Probabilistic Robust Design of Filters and of Feedforward Controllers

Primarily, we have refined a methodology for robust design based on probabilistic descriptions of model errors. The PhD Thesis by Kenth Öhrn contains a complete description of the methodology. The aim is to obtain filters and controllers which are insensitive to spectral uncertainties. A guiding principle is that large but unlikely model uncertainties should be taken into account, but they should not be allowed to dominate the design. Therefore, we minimize the mean square estimation (or control) error, averaged with respect to possible model errors.

This is in contrast to minimax design which optimizes the worst case performance. A minimax design requires model error sets with "hard" guaranteed bounds, which rarely exist in practice. It also often results in a significant loss of performance in situations where the model is nearly correct.

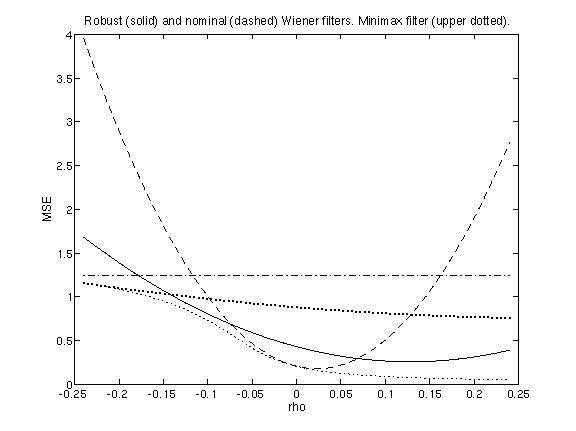

[Plot of MSE versus Rho, for different filters]
In the example above, five different filters are applied to a measurement signal. The filters are designed in different ways, based on a linear design model with an uncertain parameter (rho). The parameter may have values from -0.24 to +0.24 with equal probability. The estimation error variance (MSE) is plotted for different true values of the parameter:

  • The dash-dotted horizontal line represents the trivial zero estimate (always estimating the signal to be zero).
  • A nominal Wiener or Kalman estimator designed for rho=0 (dashed) could perform much worse.
  • A filter based on the probabilistic robust design (solid) will provide the minimal average MSE.
  • A minimax design (upper dotted) instead minimizes the worst performance, at rho=-0.24, but turns out to be rather conservative.
  • Finally, the lower dotted line indicates the performance attainable for a known parameter value.

Top of page

Uncertainty Modelling

Technically, we represent signal and system parameter deviations as random variables, with known covariances. These covariances could either be estimated from data, or be used as robustness ``tuning knobs". A robust design is then obtained by minimizing the squared estimation or control error, averaged both with respect to model errors and with respect to the noise.

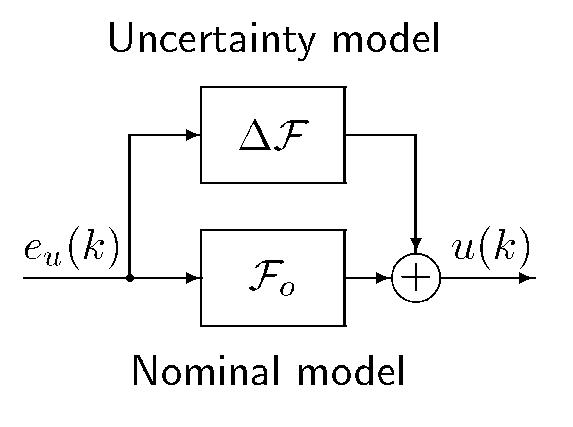

<cite> u(k) = </cite> [ <cite> F<sub>o</sub> + Delta F </cite> ]
